How to get comparison product chart in Excel

In this article, we will learn How to get a comparison product chart in Excel.

Scenario :

When working with a comparison chart in Excel. Sometimes, we need to get the comparison of the two data sets alongside each other. For example comparing the sales of two cars, yearwise. Monthly comparison of ads clicked on social media. For these problems we will understand the concept of chart and how excel charts store values in bars.

How to solve the problem?

Most of you are wondering how to represent the clustered data in two columns in a chart. For this we will be considering the clustered chart and then clubbing the two datasets to make it in a comparison manner. So we will be understanding more about clustered data charts and its formatting below.

Example :

All of these might be confusing to understand. Let's understand how to demonstrate data in a clustered bar chart in Excel. Here we have data where we need to compare the viewers of two websites on a year wise basis in a clustered 2D chart.

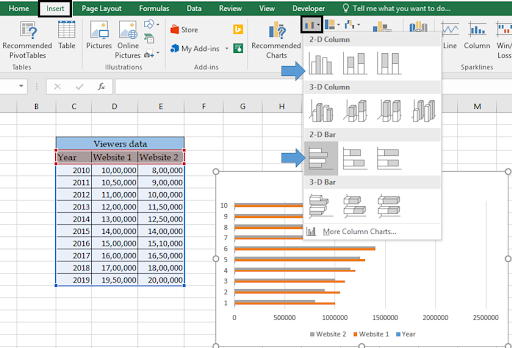

Select the data as shown in the above image. Go to Insert ->  Now select any clustered 2D chart (bar or column) as indicated arrows in the below image.

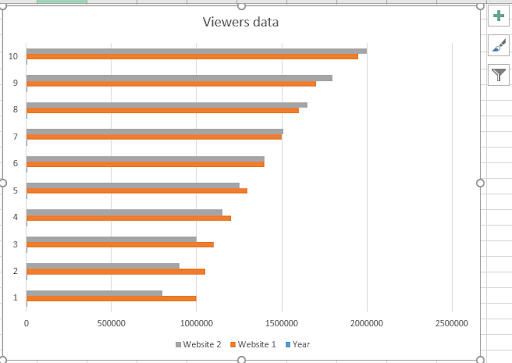

You will get a chart having a chart representing 3 datasets with indices 1 to 10 in the vertical axis. We need a chart representing two datasets on a year basis. But here the bars represent the year, website 1 viewer, website 2 viewer in chart selected.

Now follow the steps that will guide you to edit this chart to the type of chart required. First problem is the little blue bars in the chart and the vertical axis representing years data.

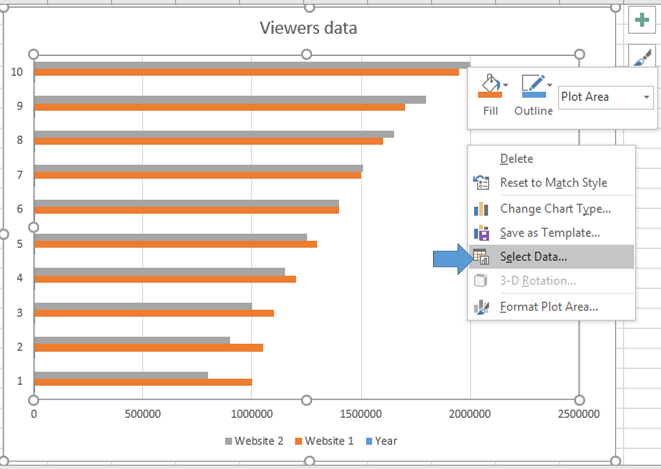

Right click on chart and click Select data option as shown below.

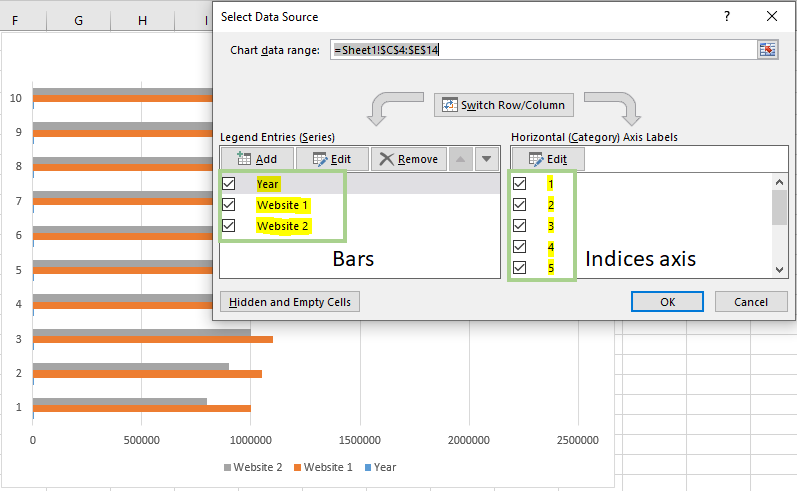

Clicking the option will display a Select Data Source dialog box. This box shows the data represented on the bars on the left and horizontal axis indices on the right. First we need to remove the third type of bars which is years.

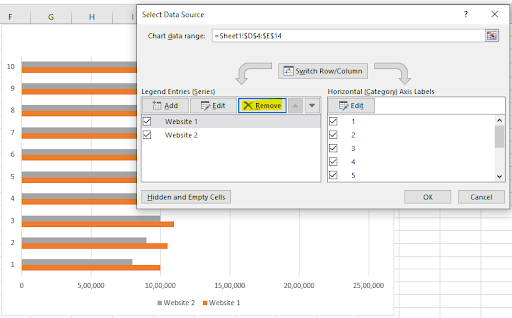

Select the Year from the Bars and click the Remove button to remove it. This will remove the little blue bars from the chart as shown below.

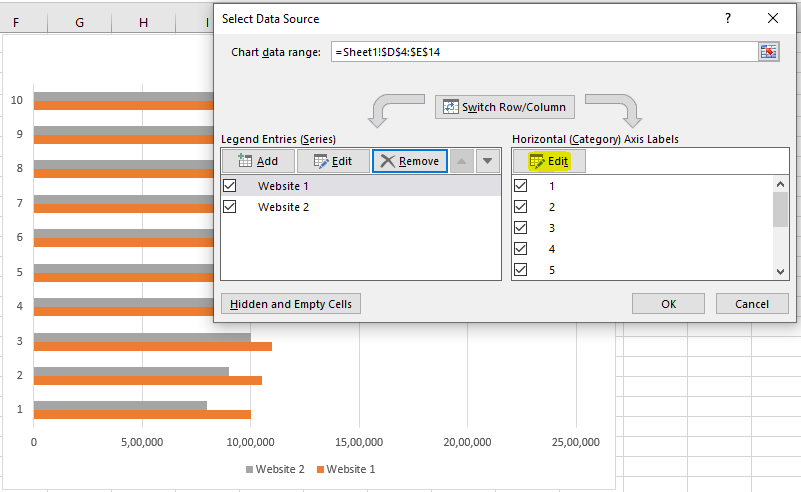

As you can see now there are only two datasets as bars. Now we will edit the indices with year values. Select the Edit button.

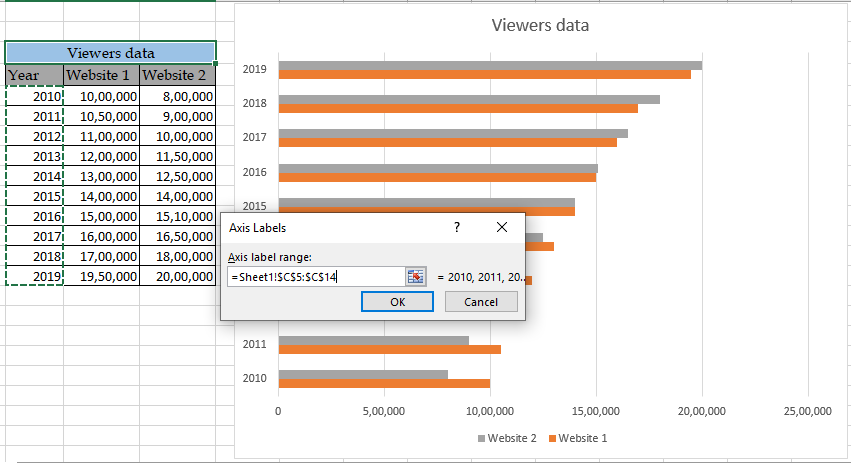

Clicking the Edit button as shown in the above image will open a Axis labels box asking for the new range to replace with indices. Select the year range from the data as shown in the image below.

As you fill the Axis Label Range by selecting the year fields from the data, the chart behind it gets updated. Now click OK to get it confirmed.

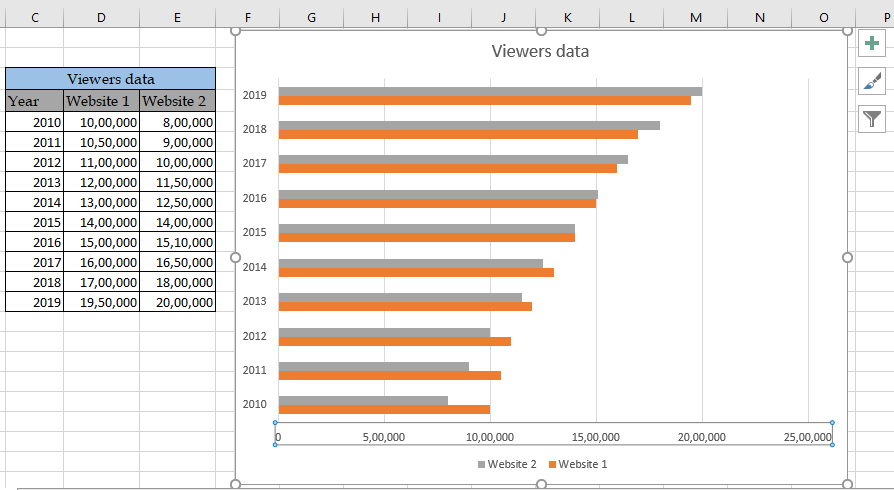

As you can see the required chart is here. Now we will give it some finishing to make it look presentable.

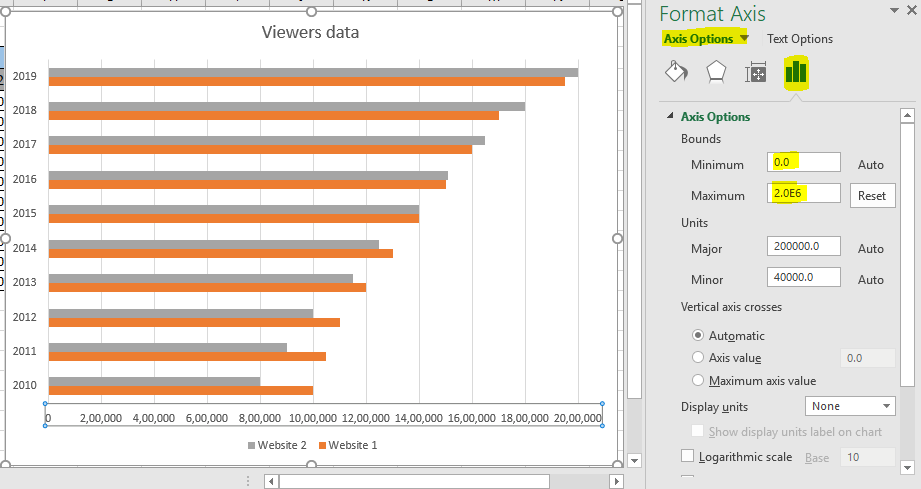

First we will edit the horizontal axis. By double clicking the axis, it will open a Format axis panel in the right of the chart as shown below.

Here The chart shows the minimum and maximum bounds which are set by default in Excel charts. The chart

is expanded by changing these bounds. For the range to be shown in millions. Select the Display units to millions from None. Display unit option will be under the Format axis option below the Bounds option we just used.

The viewer bars are presented in the millions. The chart looks presentable now.

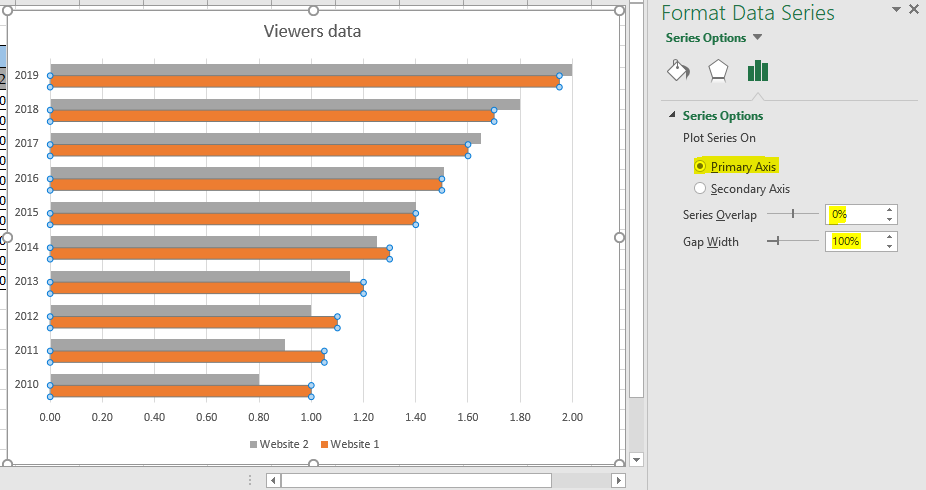

Now edit the Bars Width and gap Width between the bars by fixing the Series Overlap and Gap Width percentage as shown below.

And select the Primary Axis option from the Series Options. Edit the second bar if required. As you can see the Bars Width and Gap Width are adjusted according to chart size.

Here are some observations which are useful using the chart explained above.

Notes :

  1. Edit legends, Chart title, axis title, Data label, error bars and trendline from the plus sign on the top right of the chart.
  2. Double clicking any part in a chart like axis or bars will show its relevant editing option in the panel, right of the chart.
  3. Some options in Excel don't allow you the undo option. So you might have to redo the changes done.

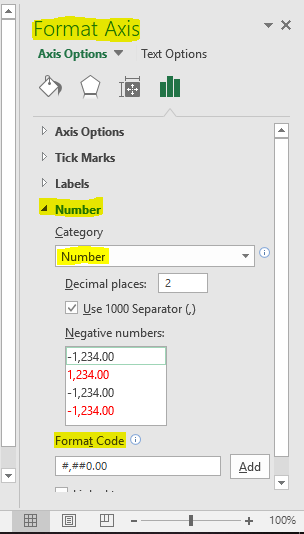

  4. Edit the format of the axis in a chart. Open Format Axis ->  Number and edit it the same way, we edit the cell in Excel as shown below.

Hope this article about How to get a comparison product chart in Excel is explanatory. Find more articles on different types of charts and their corresponding advanced charts option here. If you liked our blogs, share it with your friends on Facebook. And also you can follow us on Twitter and Facebook. We would love to hear from you, do let us know how we can improve, complement or innovate our work and make it better for you. Write us at info@exceltip.com
