Financial Report (Yearly) Dashboard in Excel 2010

This Dashboard gives us a detailed description of all the KPIs involved in the process or business. Customization is possible in this dashboard. This dashboard is a very useful tool to analyze the 7 year trends depending on the KPIs of any process

Let us understand the dashboard in detail

There are a total of 4 sheets in the excel file. (Report, Raw Data, Settings and Formulas)

Let us understand all the tabs in detail.



Report Tab:

Under the report tab all the KPIs are displayed

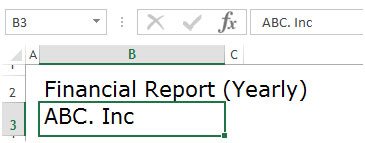

You can insert your company name in cell B3

You can select the report year from cell H2 dropdown

Once you select the report year from the dropdown menu, automatically all the KPIs would be refreshed accordingly

Below are the Key Performance Indicators

We have Revenue, Net Profit, Interest, Loss and Profit as indicators in Key Performance indicators
Here the data would be displayed in numbers and in traffic lights symbols which would be automatically indicated. Also the trend would be shown in a column graph
If KPI gets increased compared to previous year than traffic light would be displayed in Green

If KPI gets equal compared to previous year than traffic light would be displayed in Yellow

If KPI gets decreased compared to previous year than traffic light would be displayed in Red

Also this dashboard has other Indicators like KPIs, Selected Year, Previous Year, % Change and Yearly Trend

KPIs - Reflect all the process indications

Selected Year –Displays the year that is selected by the user in cell H2.

Previous Year –Displays the previous year of the selected year
% Change –Displays the change of KPI data in comparison of selected year to previous year. This column also shows % change using traffic lights

5 – Yearly Trend – Displays the 5 years yearly trend in graphical view

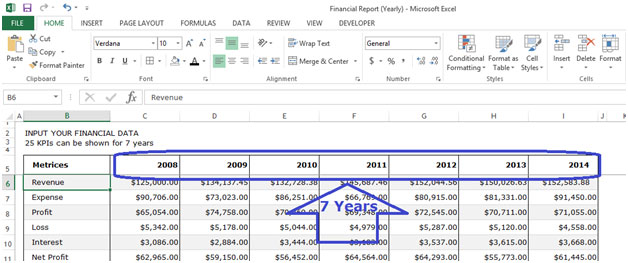

Raw Data Tab:

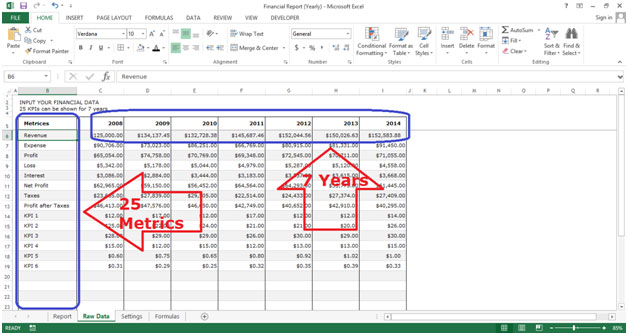

In this tab we can input 25 KPIs for 7 years

Under the Raw Data Tab we have 8 columns (Metrics name and 7 Years Data)
Metrics –Displays all the metrics that are selected

7 Years –We need to insert data for 7 years

Settings Tab:

Under this tab we can select 5 KPIs that would be displayed in the report tab in Key Performance Indicators section

We need to select from the dropdown menu as shown below

The selection would be displayed as shown below

Settings Tab:

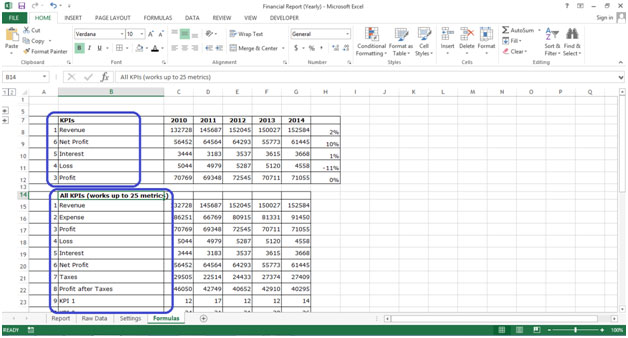

In this tab there are 2 sections (KPI calculations and All KPIs calculations)

In KPIs section 5 KPIs are displayed which wewe had selected in settings tab

Calculations are displayed here according to the selection which we have made in settings tab



image 48
