# How to use the BIN2HEX Function in Excel

BIN2HEX function in excel is used to convert binary representation of numbers of radix 2 to hexadecimal numbers (radix =16).

The table shown below shows you some of the most used base & their radix of Alpha - numeric characters

 Base radix Alpha-Numeric Characters Binary 2 0 - 1 Octal 8 0 - 7 Decimal 10 0 - 9 hexadecimal 16 0 - 9 & A - F hexatridecimal 36 0 - 9 & A - Z

Binary number is representation of a number of radix 2. Only 2 digits are used in representation of a binary number 0 & 1. Where as hexadecimal number representation have 16 digits from 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, b, C, D, E, F The below table will help you understand better.

 Binary Decimal hexadecimal 0000 0 0 0001 1 1 0010 2 2 0011 3 3 0100 4 4 0101 5 5 0110 6 6 0111 7 7 1000 8 8 1001 9 9 1010 10 A 1011 11 B 1100 12 C 1101 13 D 1110 14 E 1111 15 F 10000 16 10

Conversion formulation is shown below:

Let’s take an example having 4 bits.

0111 (binary) = 23x 0 + 22x 1 + 21x 1 + 20x 1 = 7 (hexadecimal)

The BIN2HEX function converts the binary number of radix 2 to the hexadecimal number of radix 8.

Syntax:

=BIN2HEX ( number, [places] )

Number : binary number. Number cannot contain more than 10 characters (10 bits)
[Places] : [optional] number where result expressed upto the number.

The input value to the function cannot contain more than 10 characters ( 10 bits ). Where first number returns the sign of the number (positive or negative) & Other 9 returns the value after the sign. ( 1 for negative & 0 for positive). To get the negative number, input number must have 10 characters starting with 1 as it represents the negative sign. The negative number is calculated using two's complement notation. Any less than 10 characters, the function considers default 0s in front. Any more than 10 characters, the function returns the #NUM! Error.

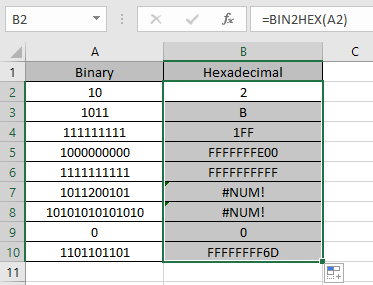

Now let’s get more understanding of the function via using them in some examples. Here we have some binary values in Binary Column. We need to convert these binary numbers to hexadecimal value.

Use the formula in hexadecimal column:

=BIN2HEX (A2)

A2 : number provided to the function as cell reference
Values to the BIN2HEX function is provided as cell reference. The BIN2HEX representation of 10 of base 2 (binary) is 2 of base 16 (hexadecimal).
Now copy the formula to other cells using the Ctrl + D shortcut key. As you can see here the BIN2HEX function returns the result of the input values.
Notes:

1. Numbers can be given as argument to the function directly without quotes or cell reference in excel.
2. The function doesn’t consider the [places] number in case of a negative decimal number.
3. If the input [places] number is not an integer, it is truncated by the function.
4. The input number must be a valid binary numeric number.
5. If the input number has less than 10 digits, the function takes 0s to the left of the number to complete its 10 character binary value.
6. The function returns the #VALUE! Error
1. If the input number is text or non-numeric.
2. If the input [places] number is text or non-numeric.
7. The function returns the #NUM! Error
1. If the input characters exceed by 10 digits.
2. If the input number is not a valid binary expression.
3. If the input number have fraction part or decimal part for example: 010111.101

Hope you understood how to use BIN2HEX function and referring cell in Excel. Explore more articles on Excel mathematical conversion functions here. Please feel free to state your query or feedback for the above article.
